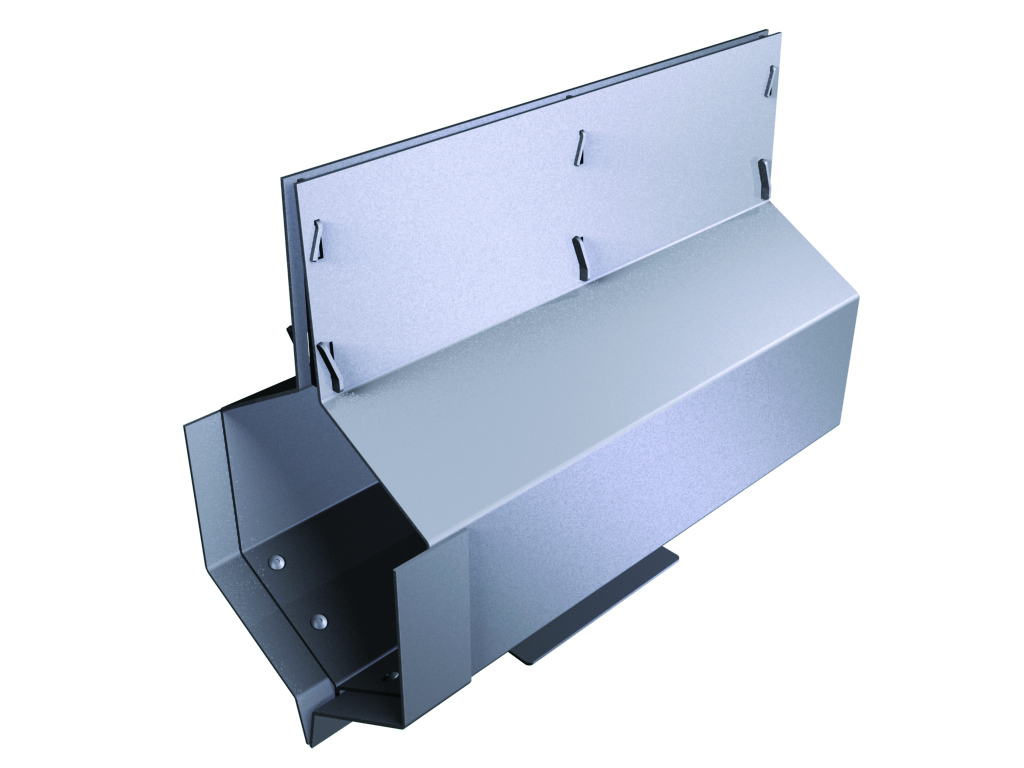

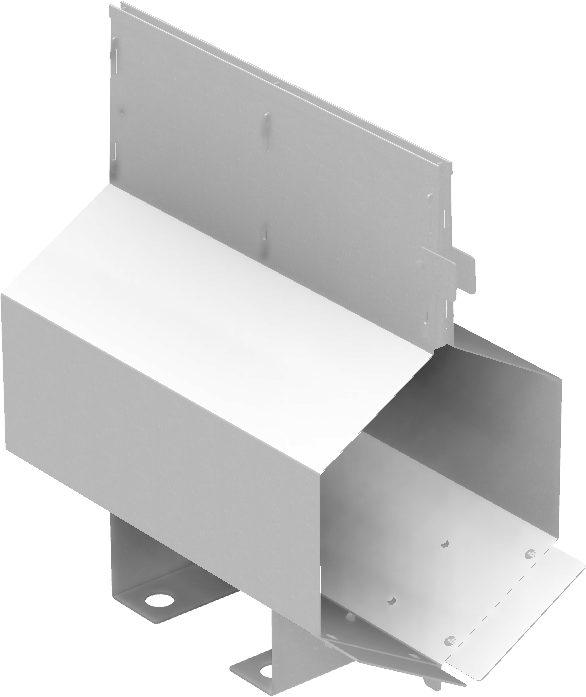

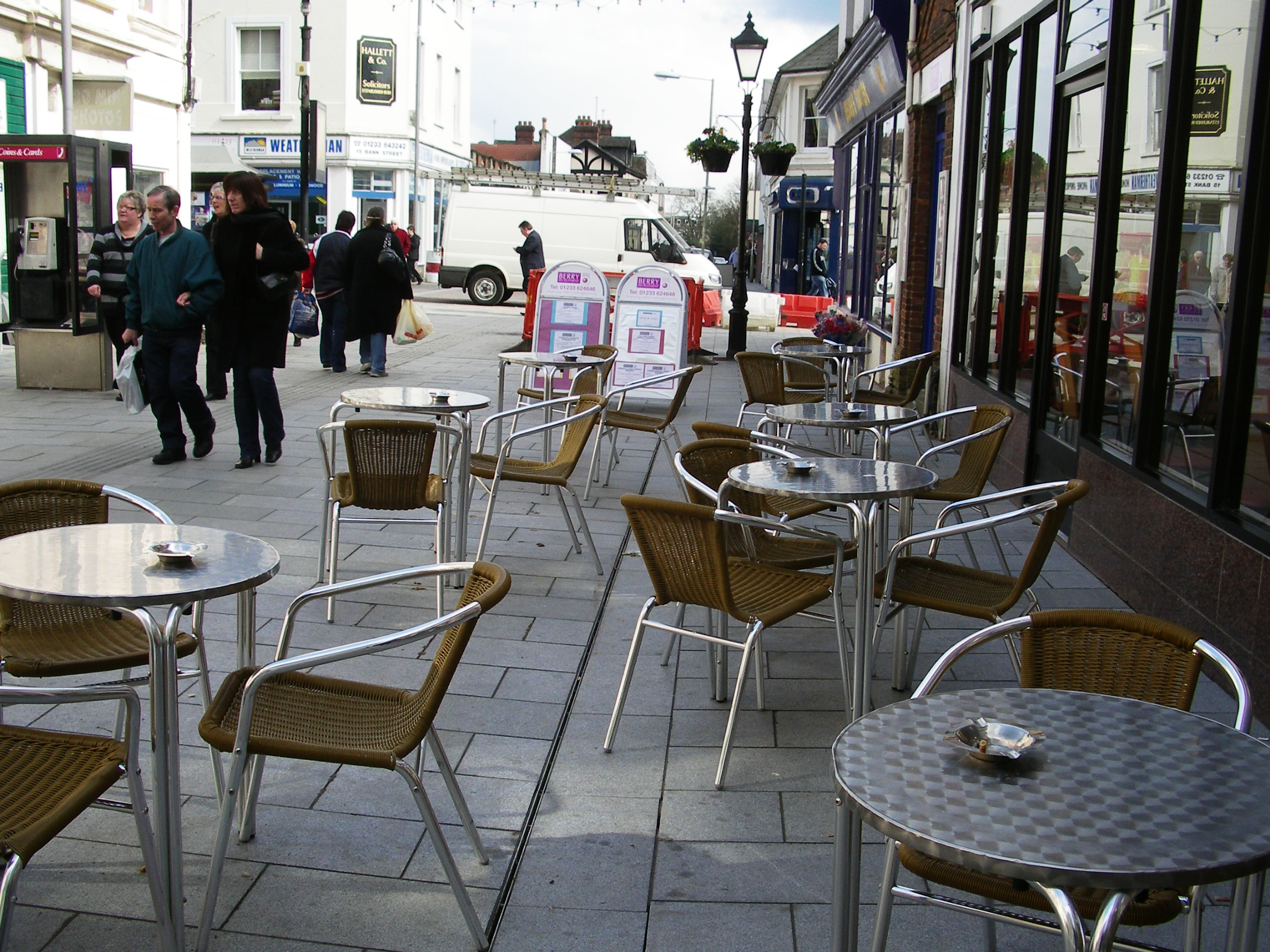

PaveSlot is used to drain external hard surface areas, where a neat, unobtrusive and aesthetic appearance is required. The system is typically used with paving units, laid against the top edge of the channel.

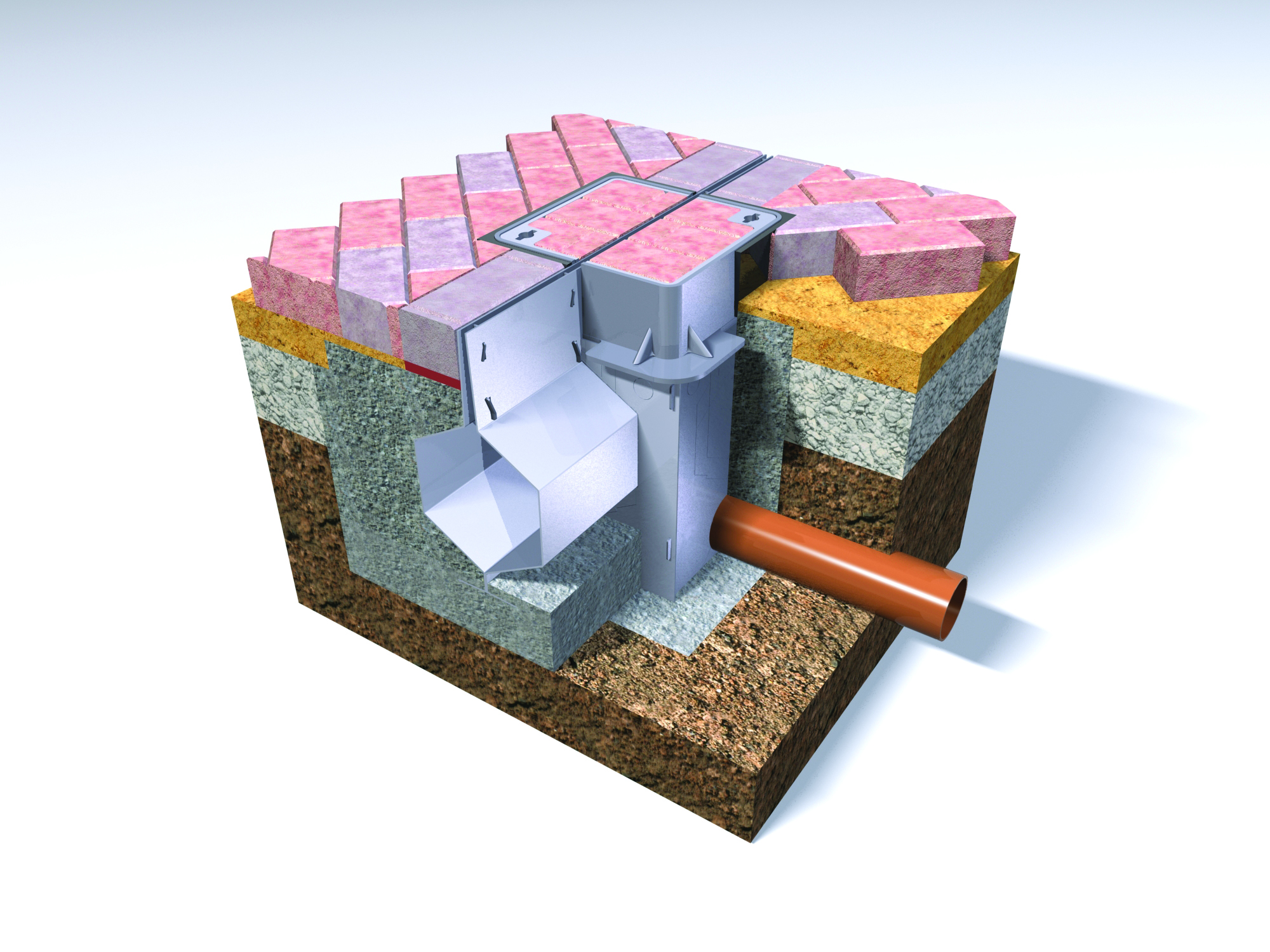

Throat spacer perforations allow any subsurface water that may have settled under paving units, beside the channel, to percolate and move into the channel body. The system is suitable for all paved areas, in public projects, for pedestrian areas with very occasional car driving straight over.

Load Classification: A15 to C250

Available channel widths: PaveSlot Gatic Slotdrain
100mm, 150mm, 225mm, 300mm, 350mm, 400mm, 500mm, 600mm

Performance

  • Strong and durable
  • Watertight
  • Rigid steel lining
  • High capacity
  • Stepped fall & self-cleansing
  • Maximum intake
  • Continuous interception(reduced wash-over)
  • Fewer channel joints

Installation benefits

  • Time and cost savings
  • Quick installation
  • Easy to handle
  • Impact resistant
  • High quality finish

Client benefits

  • Reduced maintenance cost
  • Safe system
  • Tamper proof
  • No moveable parts

Design benefits

  • Simple system, quick design
  • Precise and aesthetic
  • Design flexibility
  • Proven performance
  • Quality assurance

Installation benefits

  • Time and cost savings
  • Quick installation
  • Easy to handle
  • Impact resistant
  • High quality finish

Download the installation Guide

Materials & Finishes

  • Channels should be impact-resistant and manufactured from galvanised sheet steel to BS EN 10346: DX51D+Z275-NA-C.
  • Channel material should have 0% water absorption.
  • All materials used in manufacture of channel units should be heat resistant and recyclable.
  • The manufacturer should ideally operate in accordance with the European Environmental Standard BS EN ISO 14001.
  • Channel units should be level invert and supplied in 3.0m, 1.0m or 0.5m lengths
